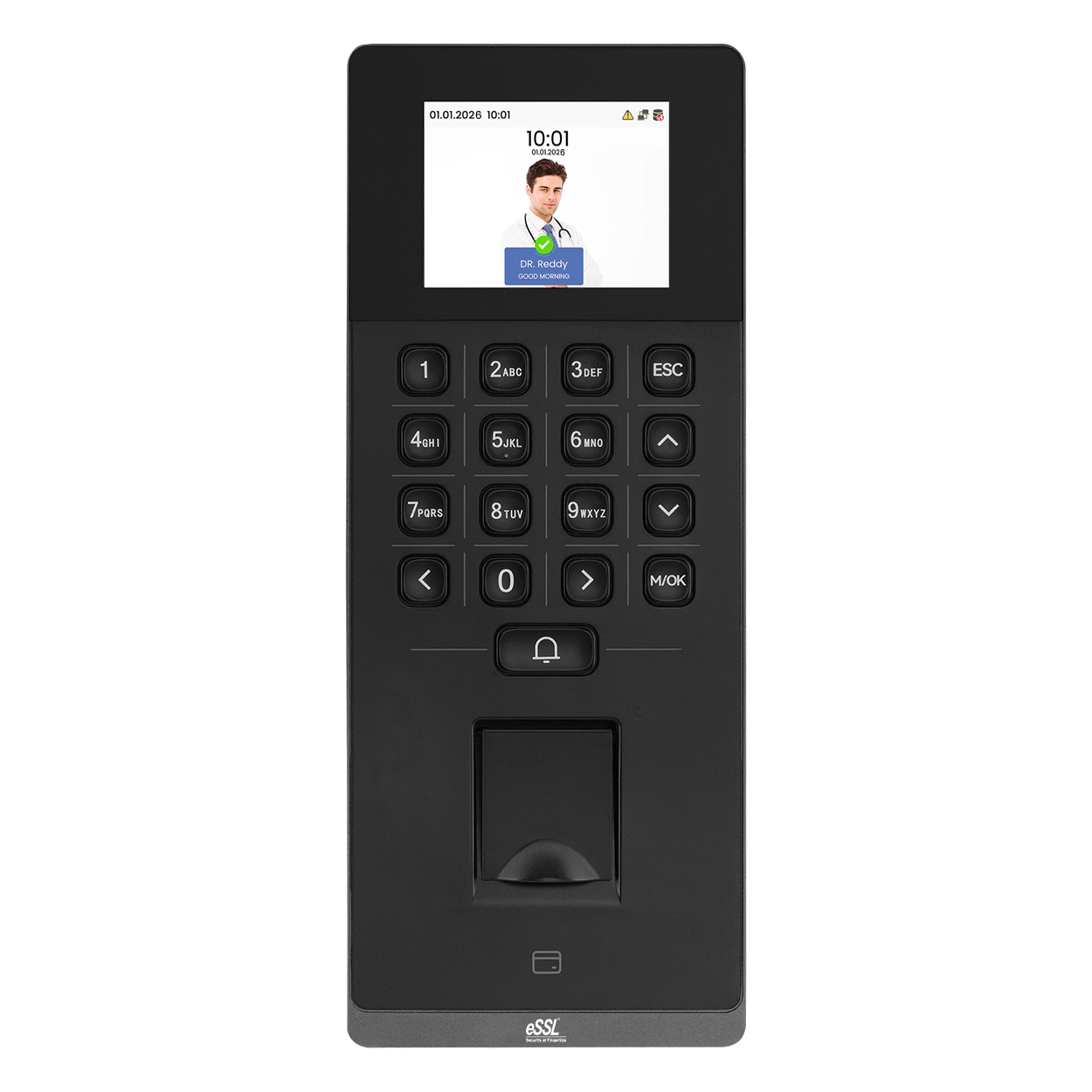

eSSL-VEGA+W+POE

Technical Specifications

Display : 2.4″@ TFT Color LCD Screen (240 * 320)
Operation System : Linux
Hardware : CPU: Dual Core@1.0GHz, RAM: 128MB, ROM: 256MB, Speaker: 8ohm±15% @1.0W,Physical Keypad: 17 Keys
Authentication Method : Fingerprint / Card / Password (Physical Keypad)
Fingerprint Template Capacity : 3,000 (1: N)
Card Capacity : 3,000 (1: N)
User Capacity : 3,000 (1: N)
Transaction Capacity : 200000
User Password Length : 6 – 8 digits
Fingerprint Authentication Speed : less than 0.5 sec
False Acceptance Rate (FAR) % : FAR ≤ 0.0001%
False Rejection Rate (FRR) % : FRR ≤ 0.01%
Card Type : Proximity Card @ 125 kHz (Standard), Mifare Card @ 13.56 MHz (Optional)
Communication : TCP/IP; Wi-Fi ; Wiegand (Input or Output); RS485; USB
Access Control Interface : Electro Magnetic Lock/ Electric Lock, Door Sensor, Exit Button, Alarm Output
Power Supply : DC 12V 1.5A PoE: IEEE 802.3
Operating Temperature : -10°C to 55°C
Operating Humidity : 10% to 90% RH (Non-condensing)
Dimensions : 205.7mm * 82.7mm * 33mm (L * W * H)
Ingress Protection Rating : IP65
