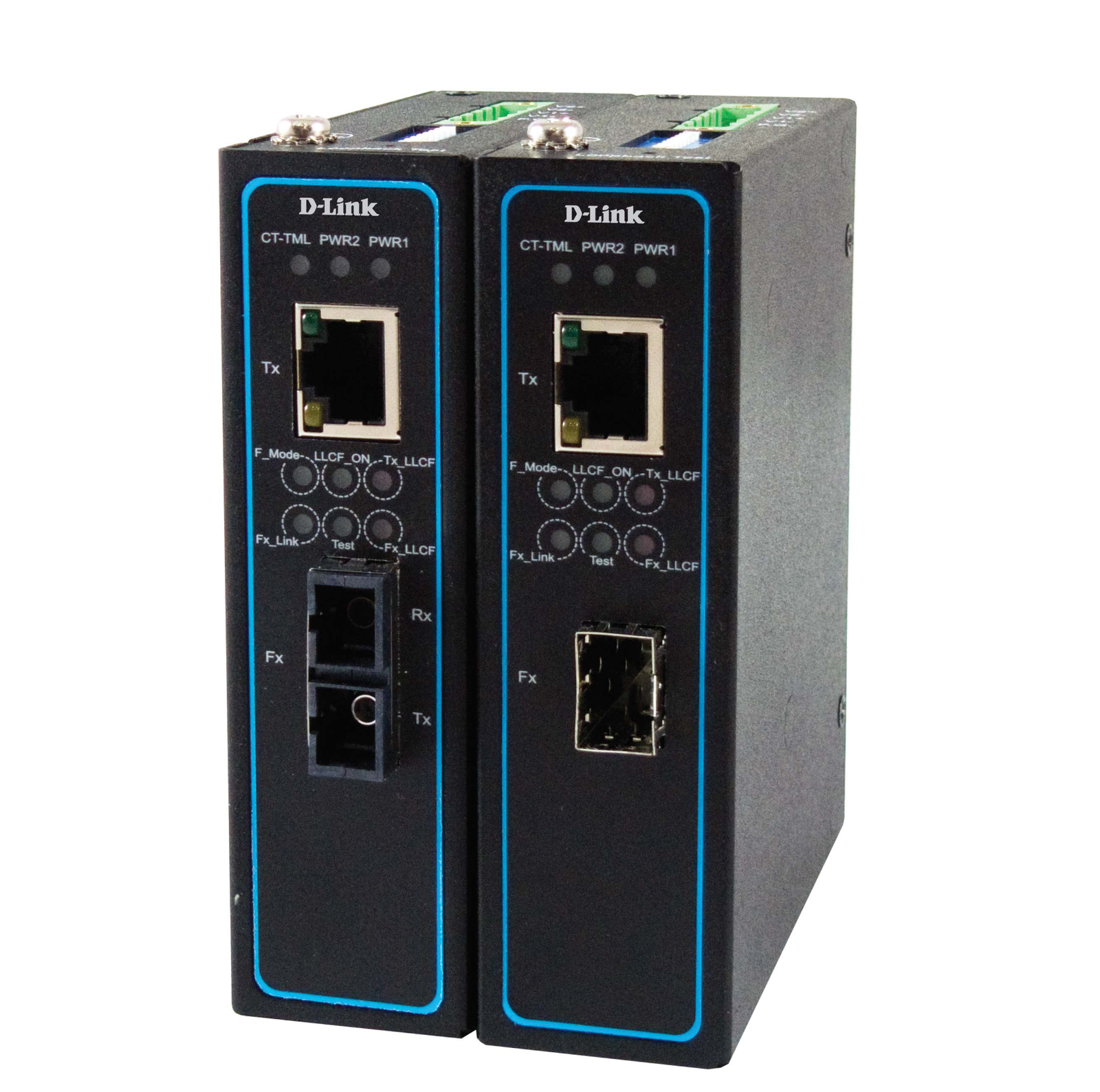

D-Link DMC-FXXXXGX Series
- Description :
- Ethernet to Fiber Media Converter / Repeater
- Brand :
- Others
- Features :
-
- Cut-Through Forwarding Mode
- Redundant Power Input
- Link Fault Pass-Through (LFP) and Link Loss Carry Forward
- Jumbo packets up to 9K bytes
- Operating Temperature: -10°C ~ 70°C
- Works in Media Converter Mode or Fiber Repeater Mode (DMC-F550 / F1000 G2 Only)
Technical Specifications
Forwarding Method
Cut Through Method
Copper Port
10/100/1000 Base-T RJ-45 Port.
Optic Fiber Port
1 x Gigabit SFP ( F1000G1 SFP Model)
1 x 1000Base-SX Multi Mode SC Style (F550G1 Model)
1 x 1000Base-LX Single Mode SC Style (F1000G1 Model
2 x Gigabit SFP ( F1000G2 SFP Model)
2 x 1000Base-SX Multi Mode SC Style (F550G2 Model)
2 x 1000Base-LX Single Mode SC Style (F1000G2 Model)
Fiber Media Support
50/125 Multi Mode up to 550 Metre (F550G1 & G2 Model)
9/125 Single Mode upp to 10 Km (F1000G1 & G2 Model)
Wavelength
850nm (F550G1 & G2 Model)
1310nm (F1000G1 & G2 Model)
Operating Temperature
-10° to 70° C operating temperature
Enclosure
IP-30 Certified enclosure
Certifications
Safety: CB
EN55024
EN55032
FCC
